Starway Vehicle 4-axle 120-ton detachable gooseneck low-bed trailer is mainly used to transport large construction machinery, industrial equipment and other heavy goods requiring strength and stability.
The body is made of high-quality steel to ensure that the frame is not only strong and durable, but also light enough for efficient transportation. The design focuses on reliability and ease-of-use. All components used in the trailer structure are sourced from trusted manufacturers both locally and internationally. Every part is rigorously inspected and meets strict quality control standards, guaranteeing a reliable and high-performance trailer.
The longitudinal beams are available in two configurations: straight beam or gooseneck, depending on your requirements. The beams are made from high-strength manganese steel with web heights ranging from 400mm to 500mm, and are welded for maximum strength. The longitudinal beams are welded using automatic submerged arc welding, and the entire frame is shot peened to increase durability.
The suspension system of this trailer adopts non-independent plate stamping rigid suspension. This setup ensures excellent load-bearing capacity and shock absorption, even on rough terrain. The system includes tandem leaf springs and suspension supports that provide strong stiffness and absorb shock to protect the trailer and load.

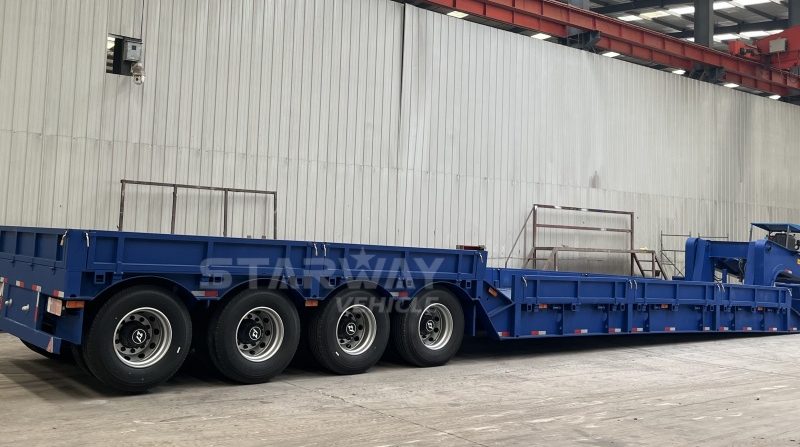

Starway Vehicle 4 Axles 120Tons Detachable Gooseneck Low Bed Trailer

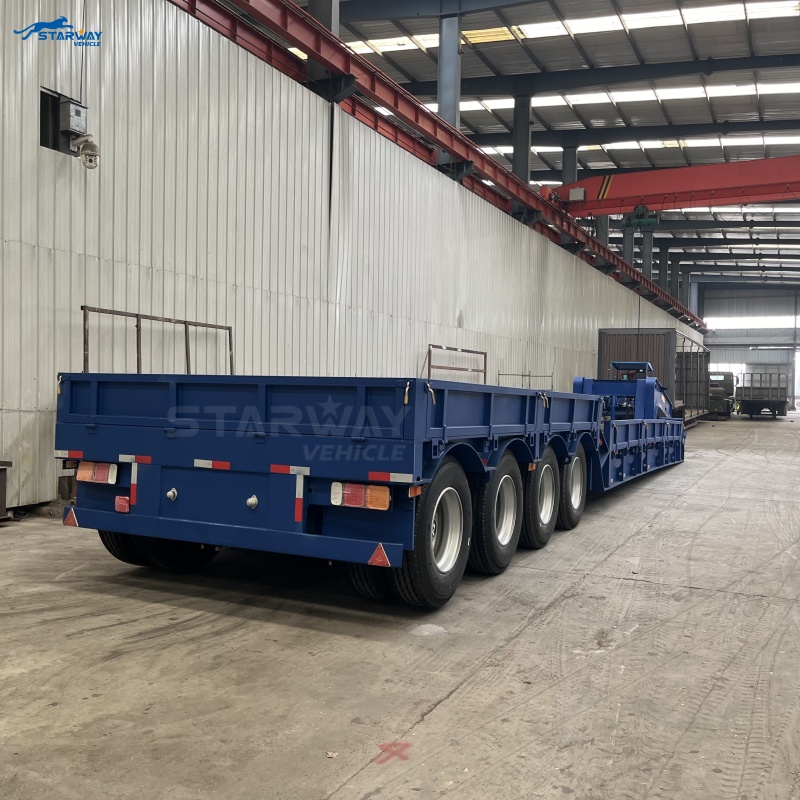

Starway Vehicle 4 Axles 120Tons Detachable Gooseneck Low Bed Trailer

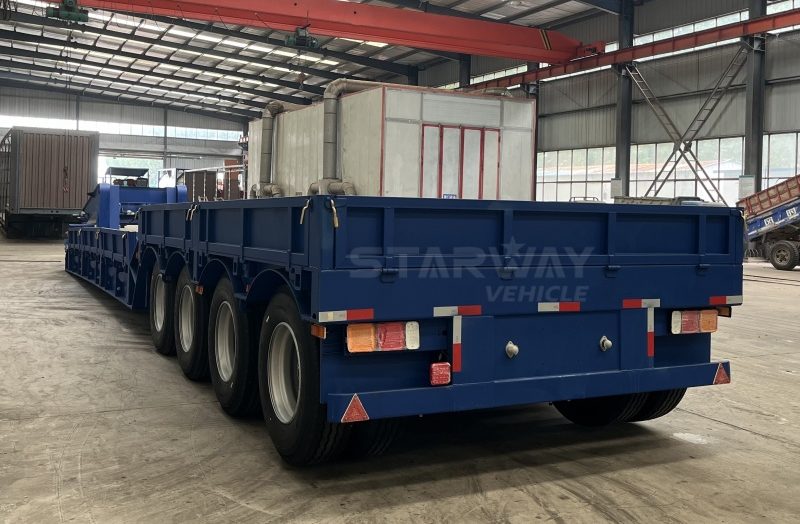

Starway Vehicle 4 Axles 120Tons Detachable Gooseneck Low Bed Trailer

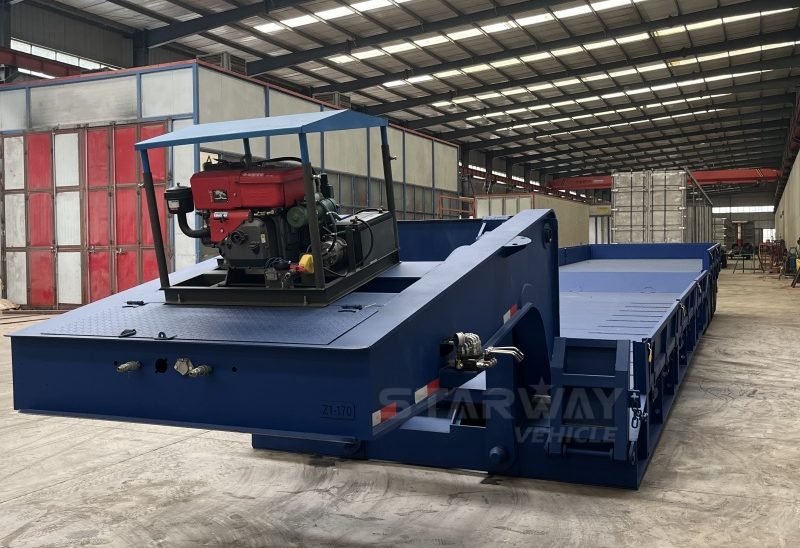

Starway Vehicle 4 Axles 120Tons Detachable Gooseneck Low Bed Trailer
The Specifications of STARWAY VEHICLE lowbed semi trailer ：
Brand ：Starway Vehicle
Application : Heavy Duty Loading
Axle : 4 Axles
Loading Capacity : 30-150Tons
Dimension : 18000*3000*1800mm(Standard Dimensions, Customizable )
Ladder : Mechanical Spring/Hydraulic
Gooseneck Detachable : Available
Multi-Axles : Available
Steering Axles : Available
Tire Style : Covered or Uncovered
Main Beam Material : Q345/T700 ;height : 500mm;upper plate :24mm;middle plate : 14mm;lower plate : 26mm
Platform Thickness : 4mm
Axle : 3/4 Axles*13/16/20 Ton Starway vehicle/FUWA/BPW//Other Brand
Suspension : Heavy-duty Mechanical Suspension
Leaf Springs : 90mm*13mm*10pcs/90mm*16mm*10pcs
Tires : 12R22.5/8.25R20 (12)
King Pin : #50(2″)/#90(3.5″), JOST/other brands, replaceable
Landing Gear : 28 tons, two-speed, JOST/other brands
Paint : Electrophoretic paint for enhanced rust and corrosion resistance
Other Customizable Options : Rims, ABS, LED lights, reflective strips, etc.
